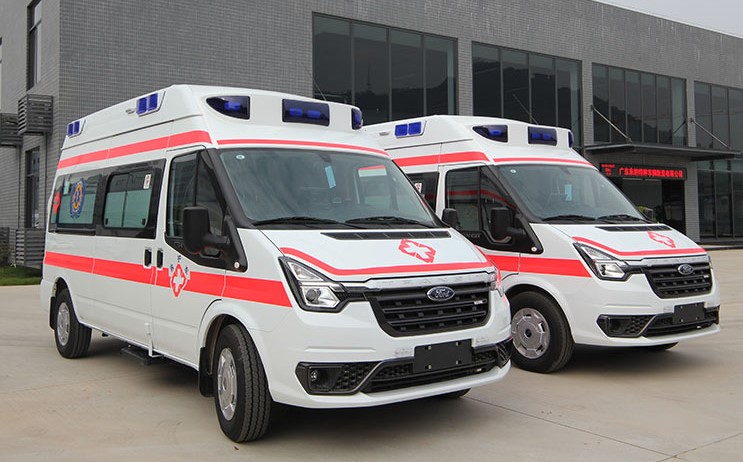

FORD NEGATIVE PRESSURE AMBULANCE

Product code : 109

0đ

Quantity:

Introduction
Comments

> 2.2L V4 TDCi engine

> Max power (kW/rpm): 100/3500

> Max Torque (Nm/rpm): 385/1800-2400

> GVM 3700 kg

> Wheelbase: 3750 mm

> Fuel Tank: 80 liters

> Rear Wheel Drive

> Transmission: 6-speed manual

> 160 Amp Alternator

LED Work lights and Electronic Siren, Optional red or blue

Six (6) Perimeter led Lights, 2 on each side and 2 on the rear, with Optional red or blue

Three(3) outside ground led spotlights that are activated when the rear doors or side doors are open.

One additional battery.

Smart Key Emergency Start

Intelligent charging regulator(Auto split charge), 12V 140Amp Voltage Sense Relay Kits.

AC220V Inverter Charger, 1000W pure sine wave inverter with battery charger.

Central electrical control system

Four(4) LED room lights in the Patient compartment

Double-loop pulse switch control device (Both driver cab and Patient compartment have one， its panel can be operated and displayed.)

220V & 12V Outlets

Rear View Camera system

UV Sterilization lamp

Ventilation system

Patient compartment Independent Heating and Air System

The intercom system could communicate between the patient compartment and the driving cab

Transfusion rack on the interior roof

Yellow nylon antibacterial handrails mounted on the top

The partition wall between the driver cab and the Patient compartment: with a sliding window

The interior furnishing is covered by ABS disposable whole.

Medical cabinet, All of the cabinets were made with 15mm lighting PVC Foam Board

ABS board plastics-absorption forming package on all faces of the cabinet of the inner Patient compartment

Two(2) Four-compartment suspension cabinet

One Foldable Seat with safe two-point seat belts in front of the partition wall

High Back revolving folding Seat with safe three-point seat belts.

Squad bench has three (3) Seats with safe two-point seat belts.

Two(2) oxygen cylinders, a Water capacity of 10 liter

The oxygen cabinet with aluminum alloy roller shutter door

Automatic switchover manifold system, German-style quick release, Two(2) outlets in action wall panel

Ambulance stretcher

PVC coil flooring of LG Hausys

The automatic manifold system is designed to be a fully automatic system for use with high-pressure cylinders. The manifold gives an uninterrupted supply of gas as the primary bank of cylinders is depleted.

Accept customization, Patient compartment customized, Exterior paint, or graphics.

Medical equipment (Defibrillation monitor, ventilator, suction device, infusion pump, CPR, spinal plate, vacuum splint, sphygmomanometer, blood glucose meter, fiberoptic laryngoscope, thermometer, etc.)

MDVR, four(4) HD cameras, and 500GB hard drives.
